Handles KS

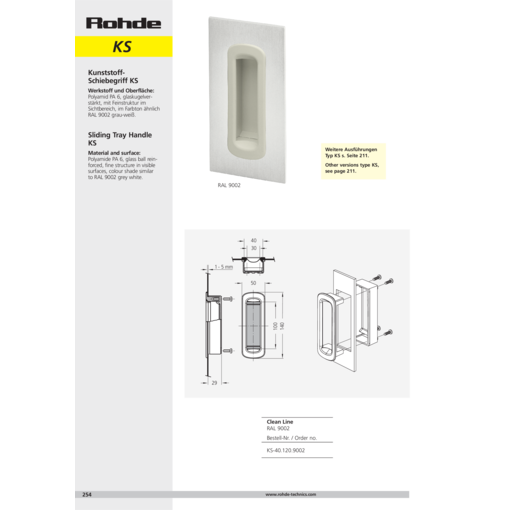

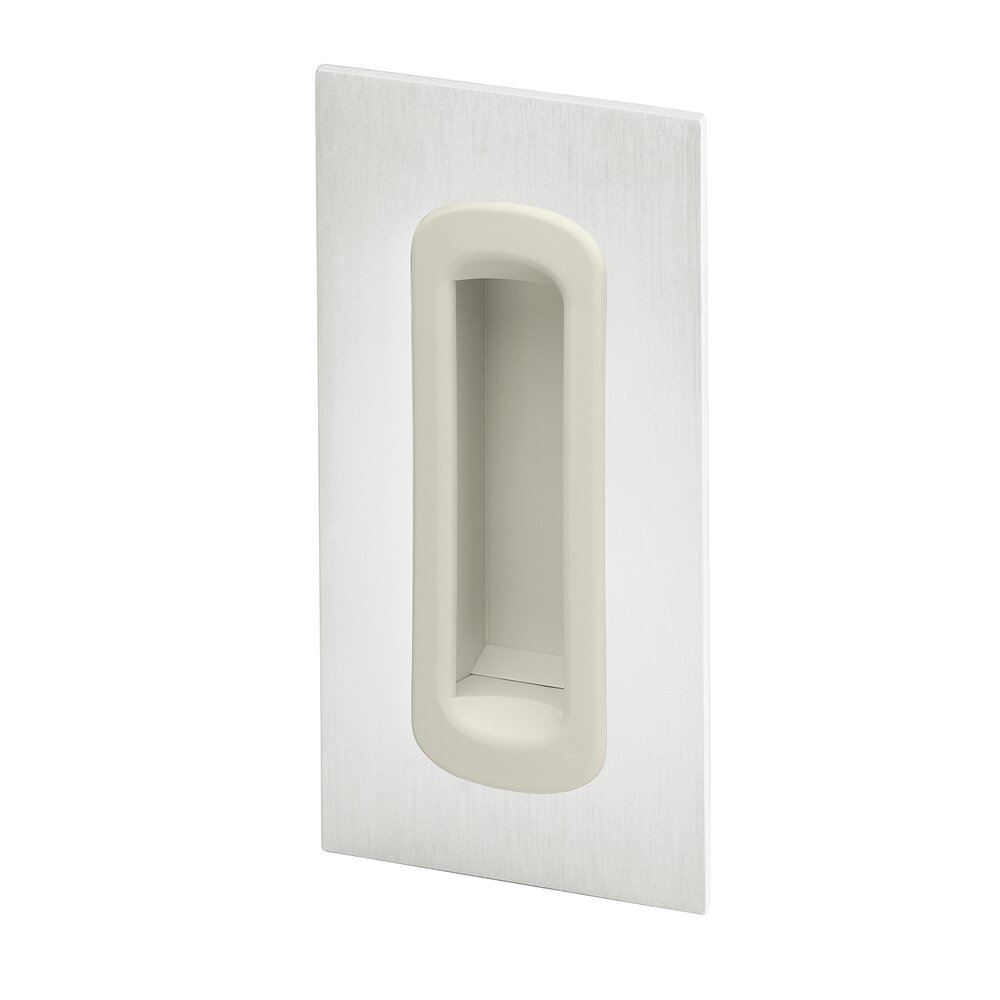

Sliding Tray Handle KS This variable shove- inset handle, is developed for the vertical installation into machine- and housing doors.
Design Advantages : Simple and stable mounting with threaded brass bush. Robust formation of the tray interior, no slip of fingers in both movement directions. Suitable for a panel thickness between 1-5 mm.

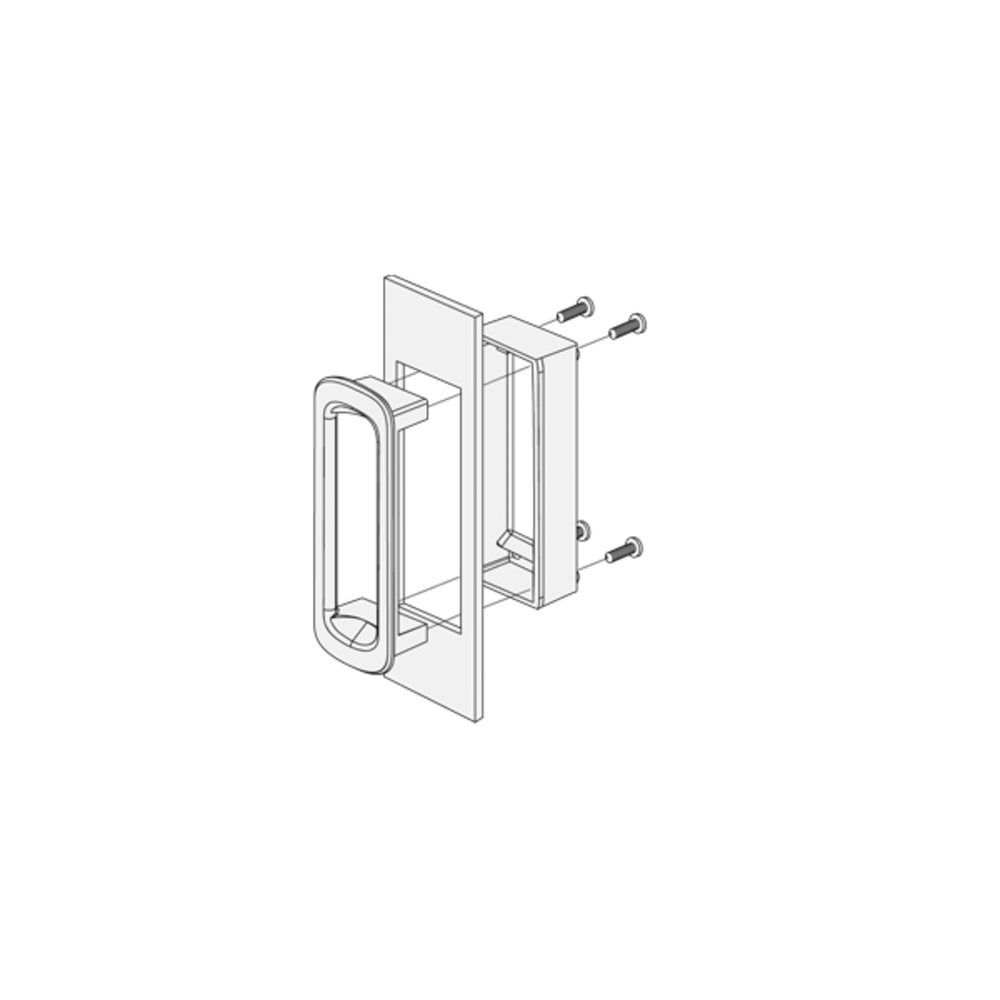

Mounting : The front section is first set into the recess in the housing panel. The rear section is now pushed onto the front section which projects into the housing interior. The handle is than fixed in position with the aid of four screws.
Scope of supply: Includes galvanised oval- head screws with cross recess, German industrial standard DIN 7985.
show more show less
|
Unit of measure
|
|---|
| Type |
|
grey white
Order-No. |
|
grey white
Order-No. |
|---|
|
grey white
Order-No. KS-40.120.9002 3D+CAD |
