Fonksiyon tutamaklar FG16-19

Capacitive handle with optical feedback by green LED. The handle switches reliable by touching the back. The electronics in the handle are wear-free and therefore extremely durable.

Material and surface:
Handle shanks made of high strength polyamide PA6, black with fine structure. Handle ledge made of lathed PVC, black.

Function elements:
FG16-19S:
Capacitive sensor (NO contact)

FG16-19O:
Capacitiver sensor (NC contact)

FG16-00:
Opposite handle without switching elements.

Connection:
4-pole connector positioned at the tubular axle of the handle ledge in the handle shank. Coupling with 10m ready-made cable available as accessory.

Protection class:
IP 54 with coupling screwed on.

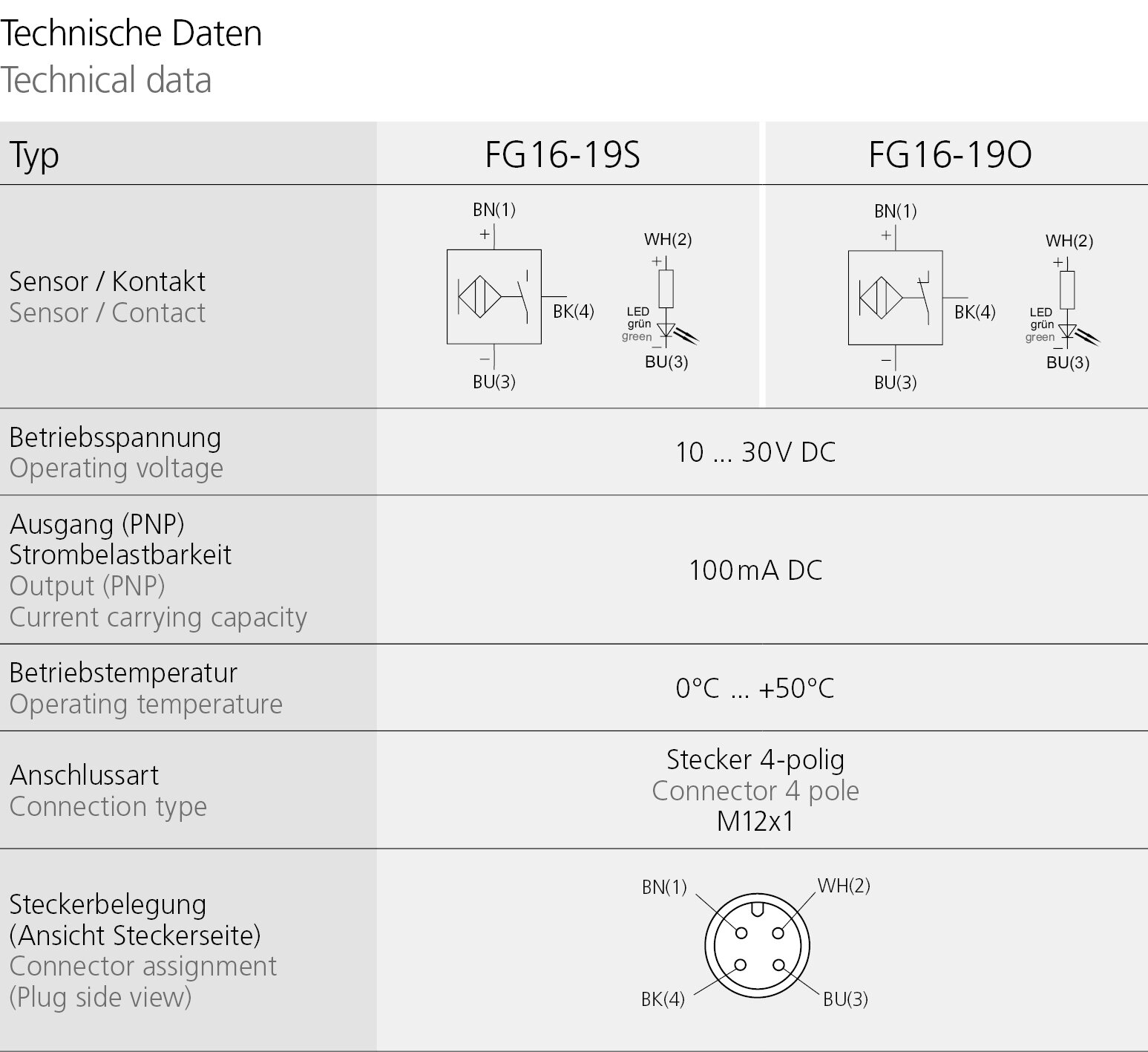

Technical data
ölçü birimi

Ürün tipi	Açıklama	Sipariş No.
Ürün tipiFG16-00	AçıklamaFonksiyonsuz karşı tutamak	Sipariş No. FG16-00.150.84 3D+CAD
Ürün tipiFG16-19O	AçıklamaCapacitive sensor (NC contact)	Sipariş No. FG16-19O.150.84 3D+CAD
Ürün tipiFG16-19S	AçıklamaCapacitive sensor (NO contact)	Sipariş No. FG16-19S.150.84 3D+CAD

Zubehör
		Tutamak aksesuarı
Uzunluk	Bağlantı elemanı	4 kutuplu (M12 x 1) Sipariş No.
Uzunluk10 m	Bağlantı elemanıaçılı	4 kutuplu (M12 x 1) Sipariş No. FZ-KS.W04.10
Uzunluk10 m	Bağlantı elemanıdüz / eksenel	4 kutuplu (M12 x 1) Sipariş No. FZ-KS.G04.10
