Functional handles FG19

Material and surface:
Handle made of aluminium profile AlMgSi 0.5; glass ball blasted and natural or black anodized.

Function elements:
FG19-01:
Push button (change-over contact)

FG19-02:
Push button 1 (change-over contact),
Push button 2 (NO contact)

FG19-00:
Counter-handle without switching elements.

Connection:
Connection cable 8-pole, 5 m led out of the function handle.

Protection class:
IP 54.

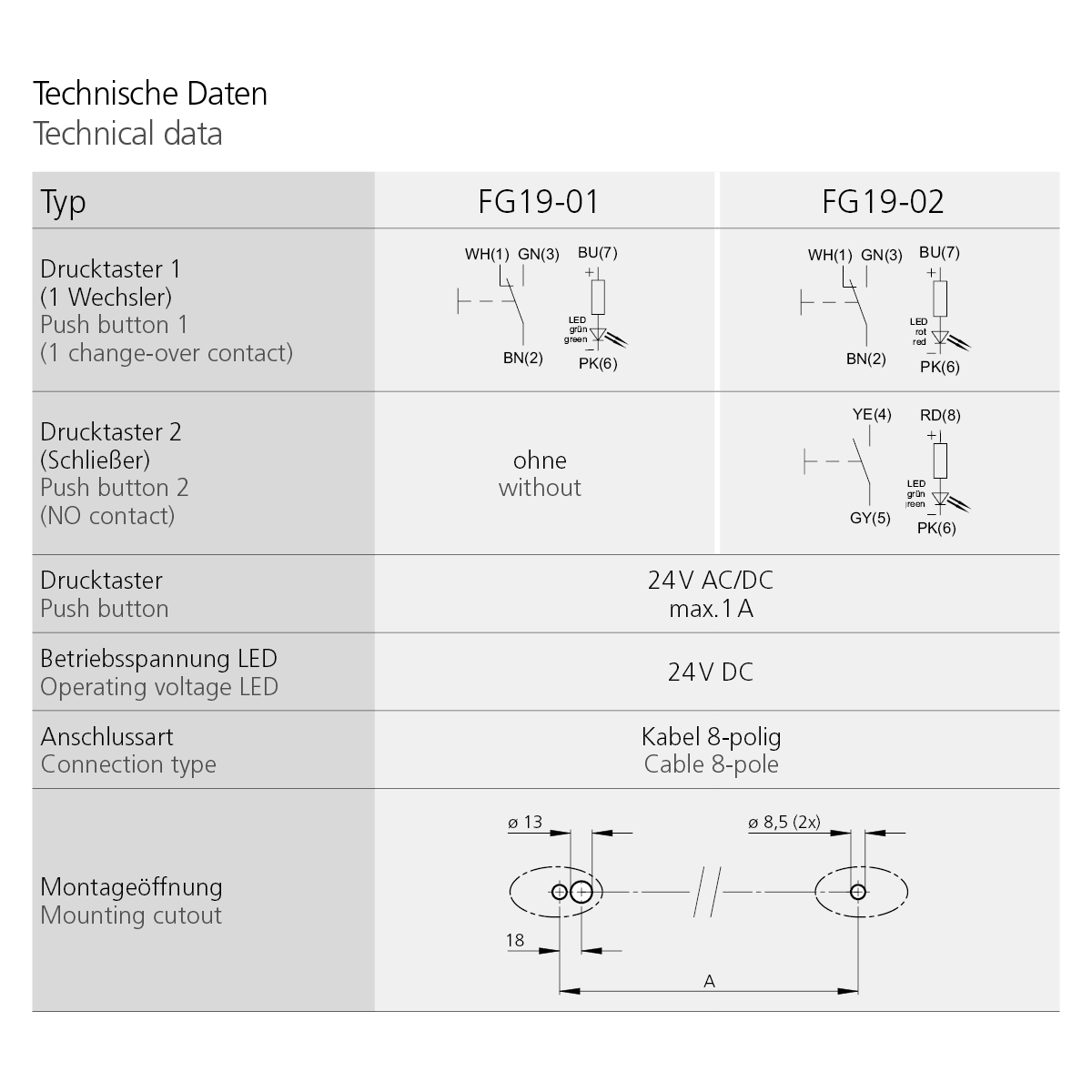

Technical data
Unit of measure
			Type
Product Type	Description	A	Anodizing version natural-colored with satin finish Order-No.	Anodized aluminum black with satin finish Order-No.
Product TypeFG19-00	DescriptionCounter handle without function	A400	Anodizing version natural-colored with satin finish Order-No. FG19-00.400.11 3D+CAD	Anodized aluminum black with satin finish Order-No. FG19-00.400.14 3D+CAD
Product TypeFG19-00	DescriptionCounter handle without function	A600	Anodizing version natural-colored with satin finish Order-No. FG19-00.600.11 3D+CAD	Anodized aluminum black with satin finish Order-No. FG19-00.600.14 3D+CAD
Product TypeFG19-01	Description1 push button	A400	Anodizing version natural-colored with satin finish Order-No. FG19-01.400.11 3D+CAD	Anodized aluminum black with satin finish Order-No. FG19-01.400.14 3D+CAD
Product TypeFG19-01	Description1 push button	A600	Anodizing version natural-colored with satin finish Order-No. FG19-01.600.11 3D+CAD	Anodized aluminum black with satin finish Order-No. FG19-01.600.14 3D+CAD
Product TypeFG19-02	Description2 push buttons	A400	Anodizing version natural-colored with satin finish Order-No. FG19-02.400.11 3D+CAD	Anodized aluminum black with satin finish Order-No. FG19-02.400.14 3D+CAD
Product TypeFG19-02	Description2 push buttons	A600	Anodizing version natural-colored with satin finish Order-No. FG19-02.600.11 3D+CAD	Anodized aluminum black with satin finish Order-No. FG19-02.600.14 3D+CAD
