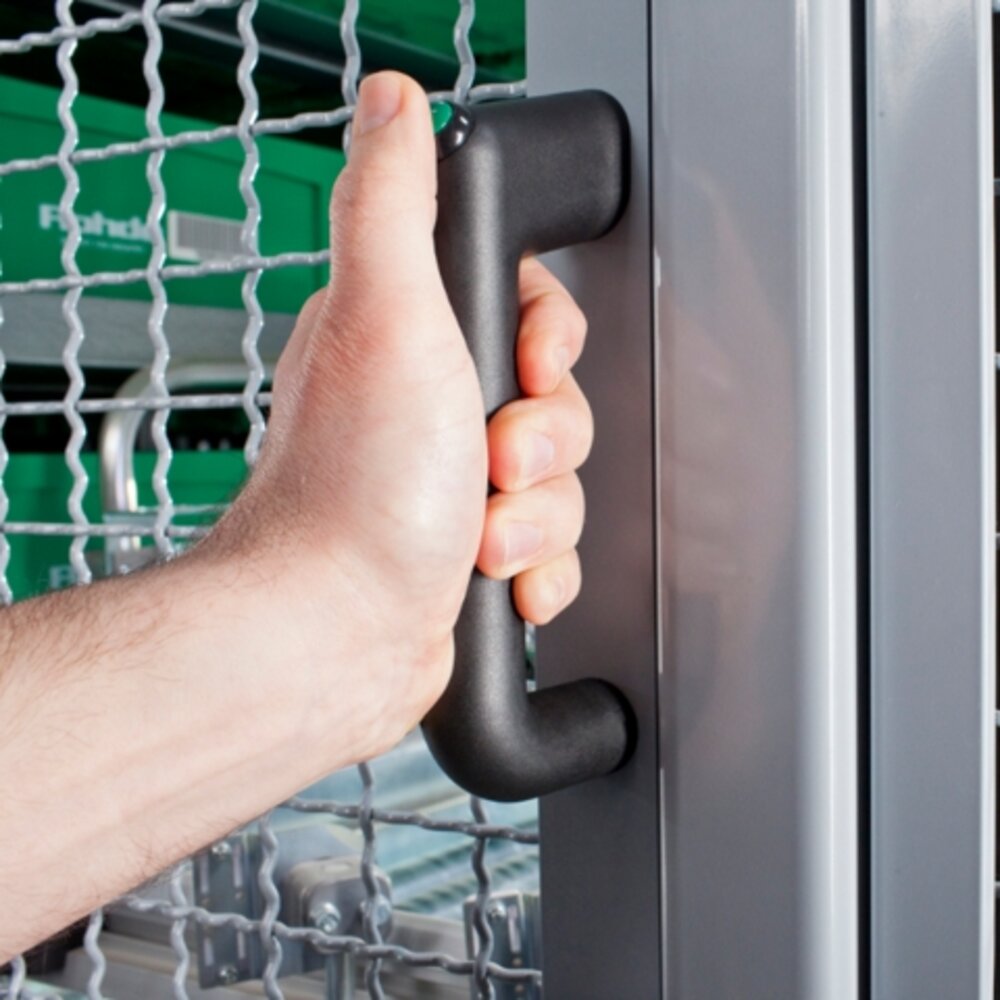

Manageable functional handle.

Material and surface:
Polyamide PA6, black with fine structure.

Function elements:

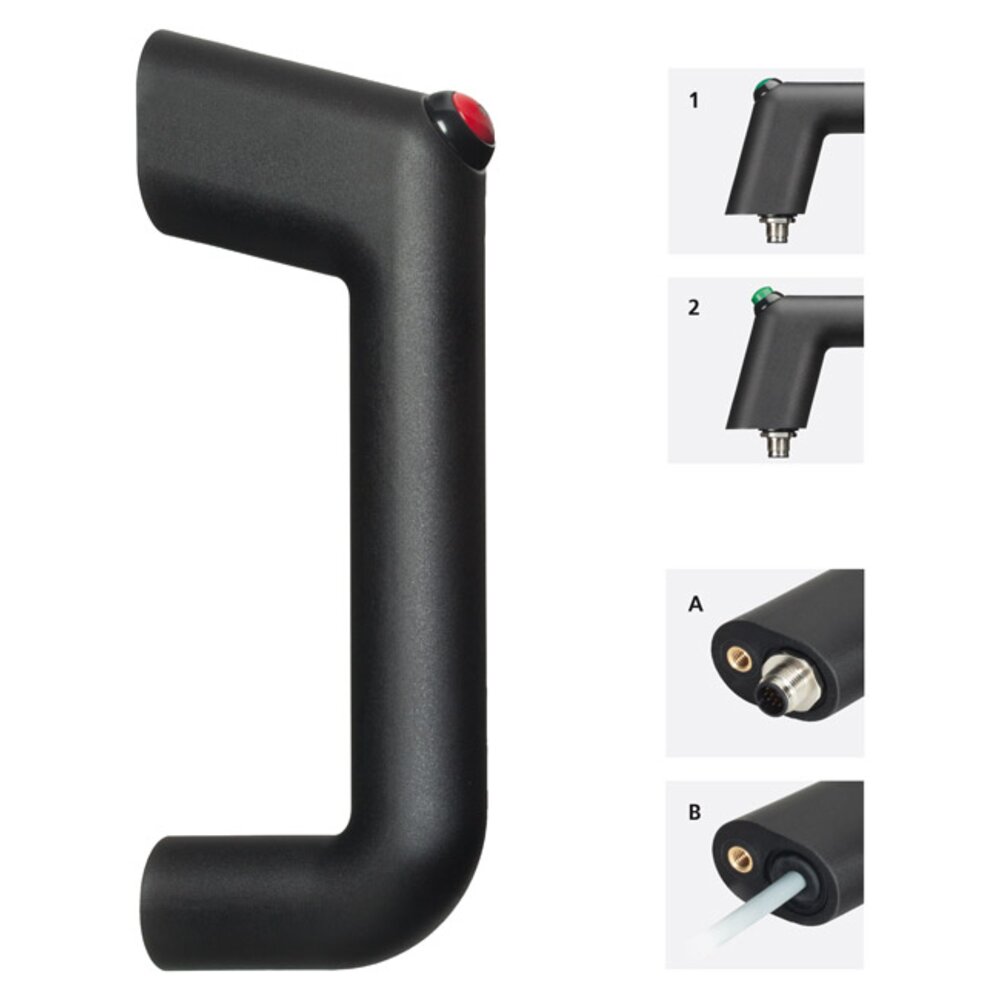

Type 1: Flat push button with red or green LED.

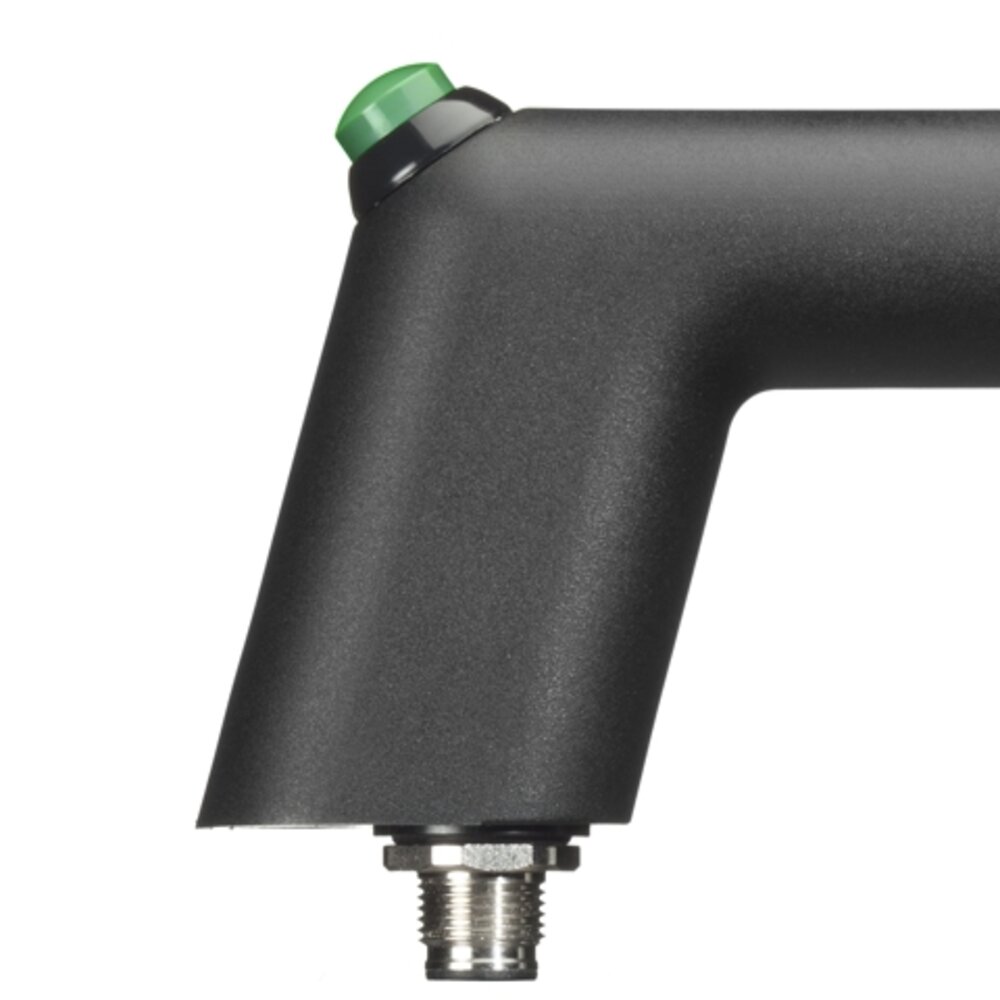

Type 2: Raised push button with red or green LED (convenient in case of a longer duration of activation).

Connection A:

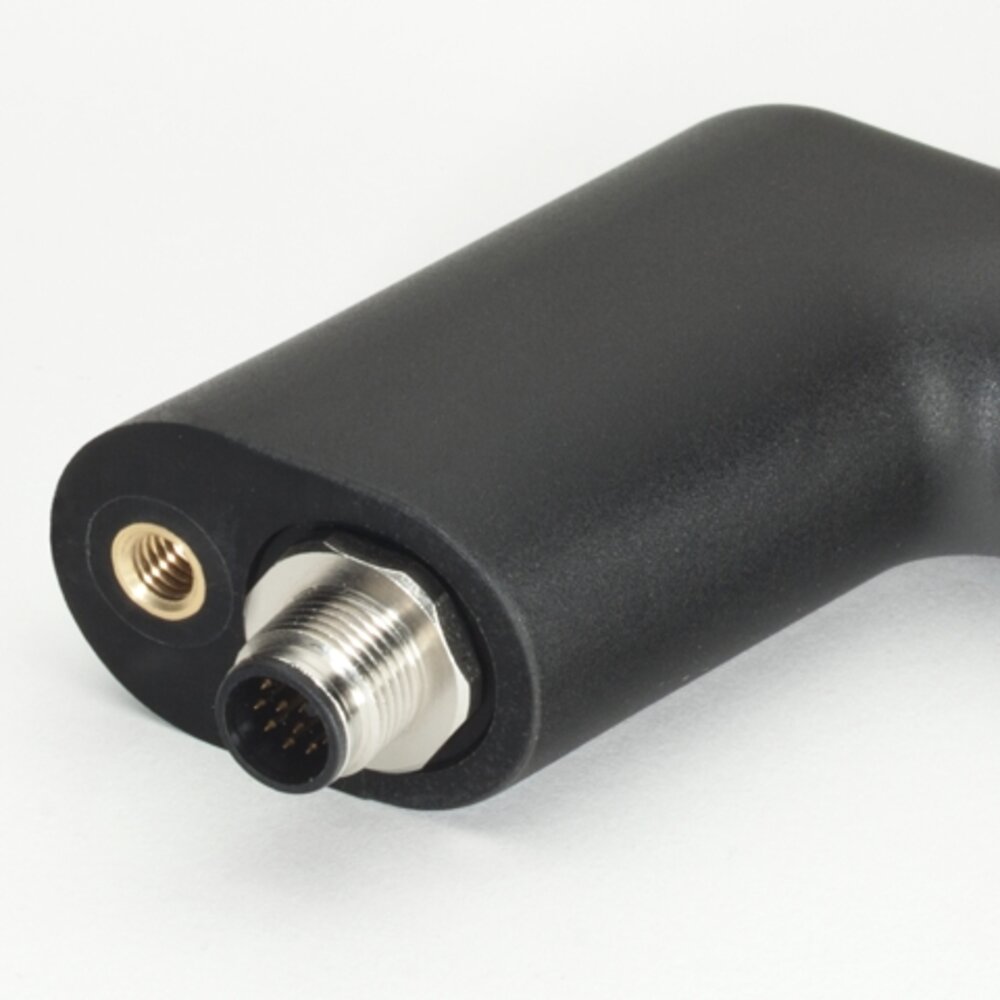

8-pole plug at the mounting surface of the handle. Coupling with 10m ready made cable available as accessories.

Connection B:

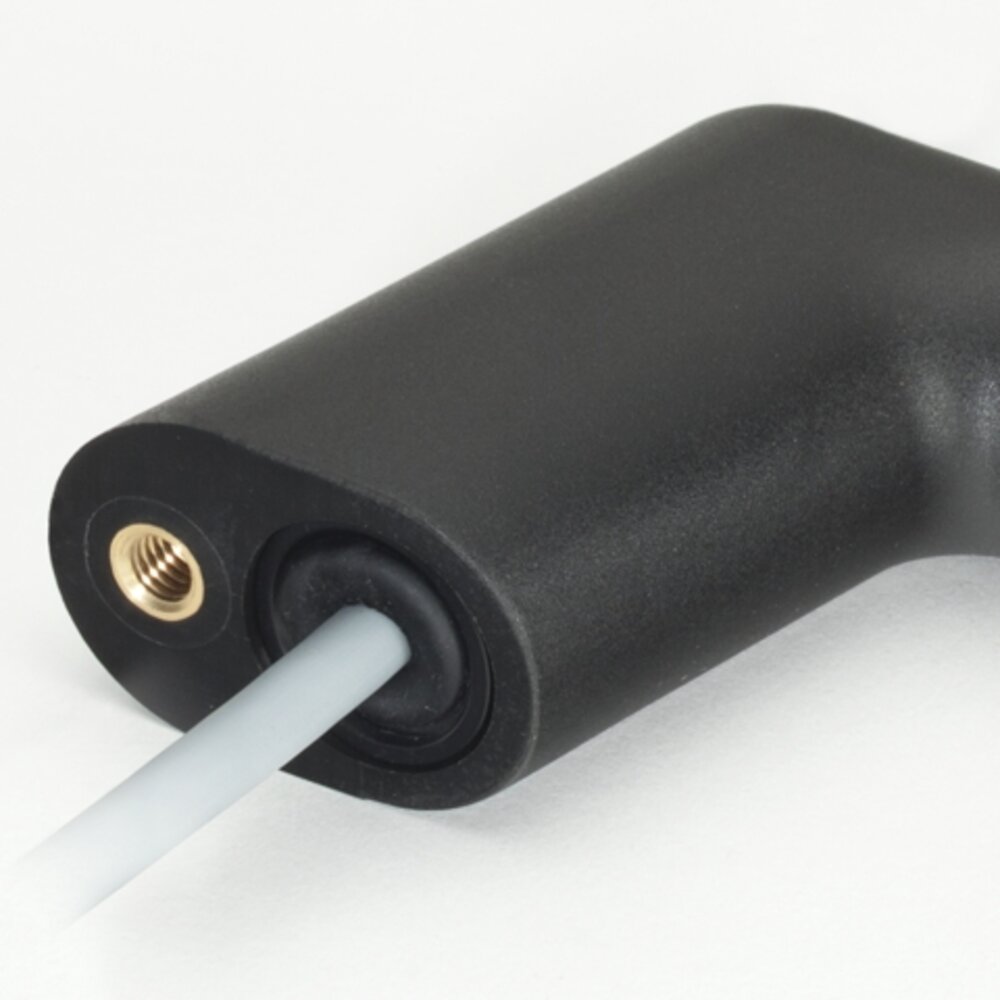

The 5m connection cable is guided out of the mounting surface of the handle shank.

Protection class:
IP 54 (for version A with screwed coupling).

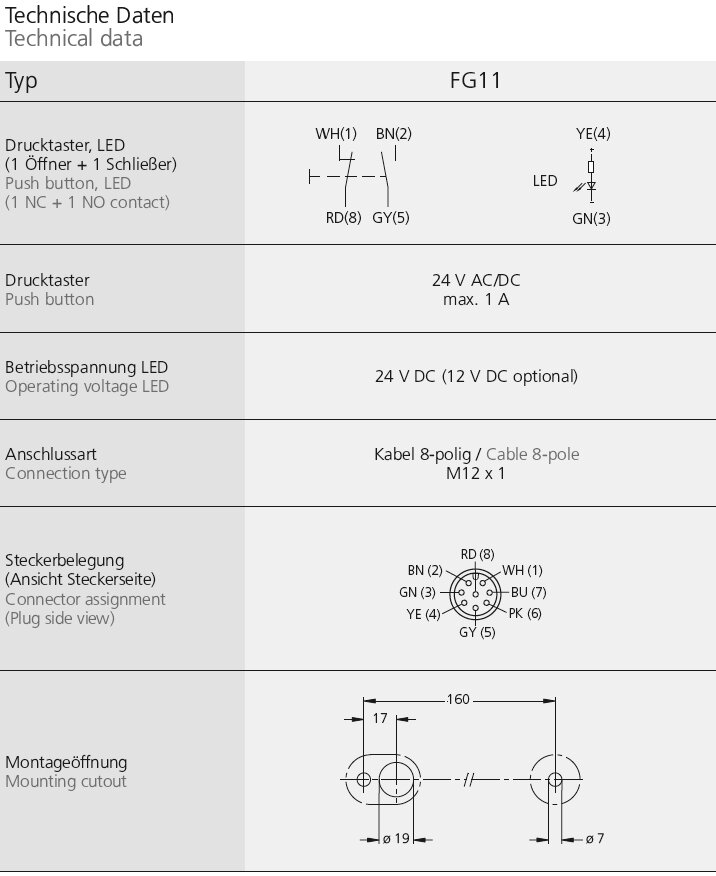

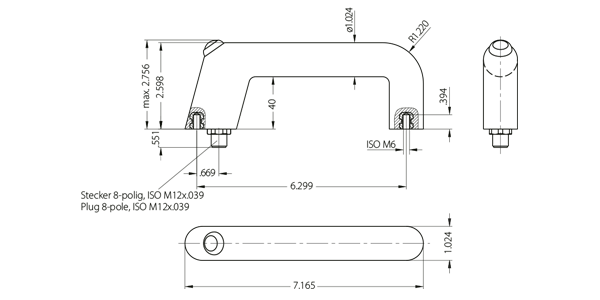

Technical data
Unit of measure
Connection
TypeVersionA A / Plug
Order-No. 		B / Cable
Order-No.
TypeType 1 / flat button Versionbutton green A160 A / Plug
Order-No. FG11-3SG.160.84 3D+CAD 		B / Cable
Order-No. FG11-3KG.160.84 3D+CAD
TypeType 1 / flat button Versionbutton red A160 A / Plug
Order-No. FG11-3SR.160.84 3D+CAD 		B / Cable
Order-No. FG11-3KR.160.84 3D+CAD
TypeType 2 / raised button Versionbutton green A160 A / Plug
Order-No. FG11-4SG.160.84 3D+CAD 		B / Cable
Order-No. FG11-4KG.160.84 3D+CAD
TypeType 2 / raised button Versionbutton red A160 A / Plug
Order-No. FG11-4SR.160.84 3D+CAD 		B / Cable
Order-No. FG11-4KR.160.84 3D+CAD
Zubehör
Handle accessories
LengthCoupling 8-pole (M12 x 1)
Order-No.
Length10 m Couplingstraight / axial 8-pole (M12 x 1)
Order-No. FZ-KS.G08.10
